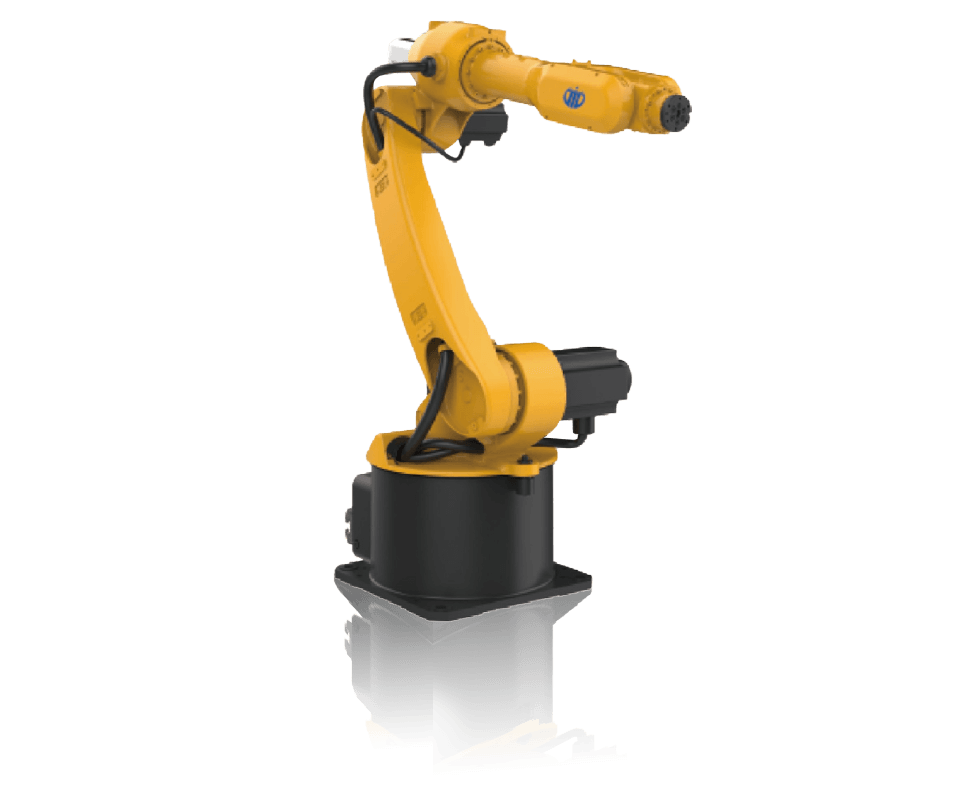

LTJ10-A Industrial robot

LTJ10-A Industrial robot
Main Specification
Model LTJ10-A
Axes 6
Max. Payload 10KG
Protection rating IP 54
Manipulator Weight 150KG
Reach 1420mm
Positioning accuracy Position repeatability ±0.02mm
Working range * Axis 1 rotation -170°/+170°
Axis 2 arm -85°/+150°
Axis 3 arm -95°/+175°
Axis 4 wrist -180°/+180°
Axis 5 bemd -135°/+135°
Axis 6 turn -360°/+360°
Rotation rate * Axis 1 rotation 200°/s
Axis 2 arm 200°/s
Axis 3 arm 200°/s
Axis 4 wrist 370°/s
Axis 5 bemd 370°/s
Axis 6 turn 600°/s
Controllers InCube 10/20

* If the mechanical limit is removed, the working range van reach -180°/+180°

※ Based on the technical upgrade, the technical parameters of the product are subject to change without notice.

Flange drawing
Base installation drawing
